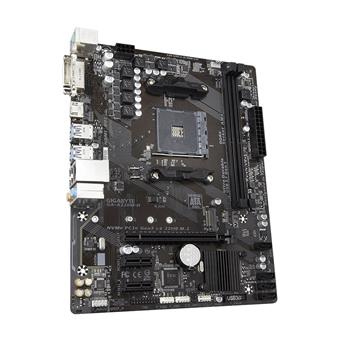

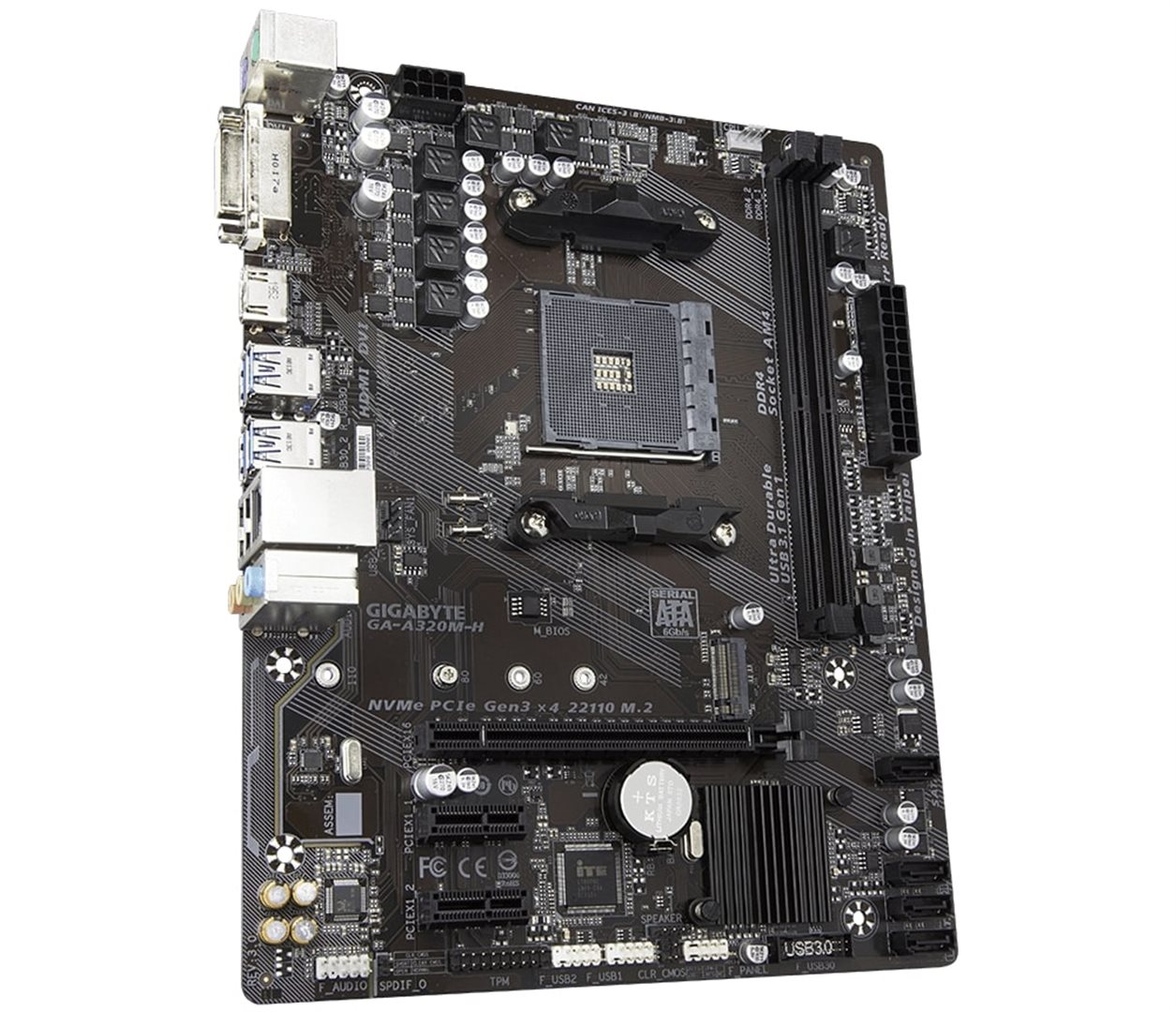

GIGABYTE A320M-H (rev. 3.x)

Chipset: AMD A320

Rozměrový formát: mATX Form Factor (244 mm x 195 mm)
Podpora pro procesory: AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
Patice procesoru: AM4

Pozice na paměti: 2x DDR4 DIMM
Podpora pro paměti:

• DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules

Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: DDR4

• ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Snon-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Extreme Memory Profile (XMP) memory modules

Grafická karta: Integrated Graphics Processor (na základě procesoru)

• 1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• 1x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz

Zvuková karta:

• Realtek® audio codec

Síťová karta:

• Realtek® GbE LAN chip (10/100/1000 Mbit)

Rozšiřující sloty:

• 1x PCI Express x16 slot, running at x16 (PCIEX16)
• 2x PCI Express x1 slots

RAID řadič: 0, 1, 10

SATA:

• 4x SATA 6Gb/s connectors

M.2:

• 1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2(Note) SSD support)

USB:

• zadní USB porty ( celkem 6 )
• 2x USB 2.0/1.1 ports
• 4x USB 3.1 Gen 1 ports
• přední USB porty ( celkem 6 )
• 4x USB 2.0/1.1 ports
• 2x USB 3.1 Gen 1

Interní porty:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x CPU fan header
• 1x system fan header
• 1x M.2 Socket 3 connector
• 4x SATA 6Gb/s connectors
• 1x front panel header
• 1x front panel audio header
• 1x S/PDIF Out header
• 1x USB 3.1 Gen 1 header
• 2x USB 2.0/1.1 headers
• 1x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
• 1x speaker header
• 1x Clear CMOS jumper
• 1x chassis intrusion header

Externí porty:

• 1x PS/2 keyboard port
• 1x PS/2 mouse port
• 1x DVI-D port
• 1x HDMI port
• 4x USB 3.1 Gen 1 ports
• 2x USB 2.0/1.1 ports
• 1x RJ-45 port
• 3x audio jacks (Line In, Line Out, Mic In)

BIOS: 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Stránka výrobce: https://www.gigabyte.com/Motherboard/GA-A320M-H-rev-3x
